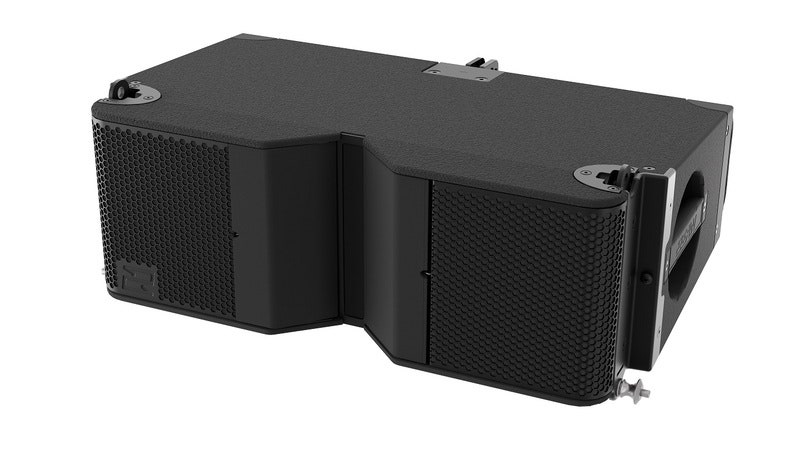

NT206L - Quality meets Flexibility
The NT206L is designed for simple, rapid deployment. Every configuration from pole mounted enclosures to ground stacking to a completely rigged and flown line array system are at your disposal. EAW offers numerous setup accessories to meet any challenge.
The fly bar can be inverted and used for any secure ground stacking or it can be used in conjunction with an M20 Mount for securing your array to the top of subwooffer. The fly system even offers a pull back adapter, often needed for creating extreme down angles for flown compact line arrays.
Stress-Free Set-Up & Operation
NT206L is one of the lightest, yet most powerful compact active line array loudspeakers available in the market today. It delivers 139db at 65-20Khz, all from a 31.7lb Baltic birch, steel and aluminum enclosure. It offers innovative adjustable horizontal coverage via EAW’s new Core Technology; AHD (Adjustable Horizontal Directivity) with field adjustable horn flairs providing a path to multiple coverage patterns. NT206L offers simple analog signal interface making your day worry-free from all too common audio networking control and transport.
Adjustable Horizontal Directivity
AHD (Adjustable Horizontal Directivity) technology allows horizontal high-frequency dispersion to be adjusted to 80, 110, or asymmetrically to 95 degrees based on the venue’s needs.
No tools or software required.
- Frequency Response: 65Hz-20kHz
- Max SPL: 139dB
- Operating Mode: Bi-amp LF,HF
- Subsystem: LF 2×6.5″ cone, 2″ VC Vented
- HF 1×1″ exit, 1.75″ VC compression Driver (Adjustable Horizontal Directivity (AHD) Horn Loaded with Isophasic waveguide)
- Nominal Beamwidth: Horizontal: Narrow (80 degrees), Wide (110 degrees), Asymmetric (95 degrees left or right of center)
- Vertical: 10 degrees
- Power Handling: LF:1000W, HF:500W
- Connections: AC Mains: Neutrik PowerCON TRUE1, XLR/Analog
- Dimensions: 213mm X 533mm X 379mm
- Weight: 14.5kg
