Artikelnummer 9029898

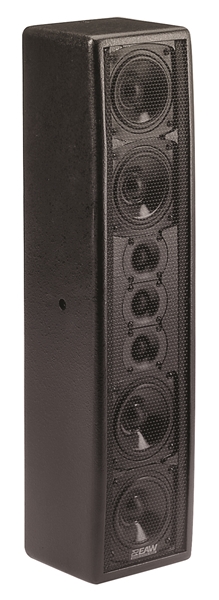

EAW LS432i Black

Passive two-way column speaker White - price on request

EAW’s LS432i line source loudspeaker system brings the classic column speaker up-to-date. Sophisticated frequency shading and all-pass filtering integrates the 4x 4-in woofers and 3x 1-in soft dome tweeters, maximizing the benefits of line source coupling while eliminating grading lobes. The system maintains a well behaved nominal vertical coverage pattern of 20° to below 1000 Hz. Even at 500 Hz, the vertical pattern is still 80° . With the enclosure baffle defining a gentle arc, the drivers form a curved line source to help prevent the vertical pattern from collapsing in the crossover region.
  • High performance Column Array(tm) system
  • 4x 4-in LF/3x 1-in tweeters
  • Line array effects create consistent 20° x 140° coverage
    Dimensions
  • Height 660
  • Width 159
  • Depth (max) 152
  • Depth (top) 146 Depth (bottom) 146
  • Weight: Net Weight 9.1 kg
