sE Electronics DM1

Artikelnummer 1315910

Explosive level for all your passive mics

675 kr./stk

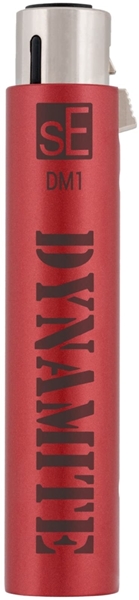

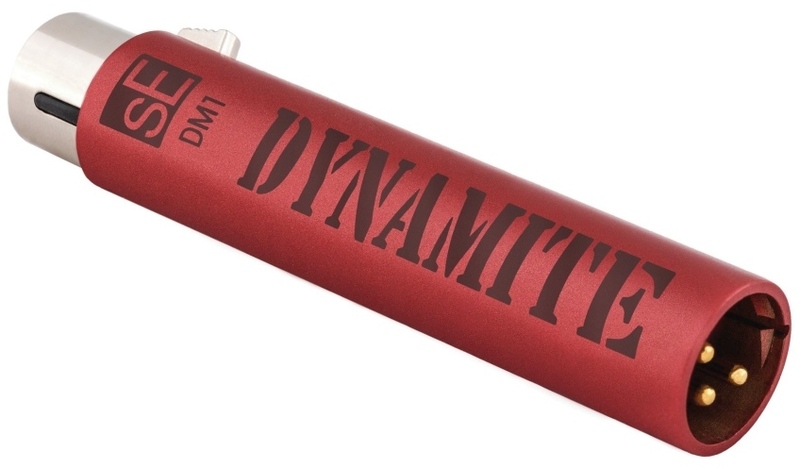

sE Electronics DM1 Dynamite

An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your passive microphones.

LOT of gain

Some mics need a LOT of gain - and not all preamps are up to the challenge. The DM1 DYNAMITE is an ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones - perfect for podcasting, recording, or live sound.

With a sophisticated class-A design and specially-selected high-grade FETs, the DM1 has vastly lower output impedance and nearly half the noise of anything else on the market. Additionally, the gain it provides is always a consistent +28dB regardless of the connected load, thanks to its dedicated buffer amplifier.

+28dB OF CLEAN, CONSISTENT GAIN, INDEPENDENT OF LOAD

designed for neutral, balanced sound quality
the perfect way to boost the signal of a passive microphone
gain stays consistent regardless of connected load
provides significantly improved level to your mic preamp for proper gain staging

SOPHISTICATED CLASS-A ELECTRONICS

state of the art electronics and high-grade FETs provide supremely low noise
transformerless design for pristine sound quality
provides the lowest noise in its class

DEDICATED OUTPUT BUFFER AMPLIFIER

provides +28dB output independent of load impedance or cable length
extremely low output impedance
drives long cable runs and can reduce susceptibility to RF interference, buzz & hum

SLIM, RUGGED ALL-METAL HOUSING WITH PREMIUM FINISH

efficient rejection of any electrical interference and noise
high-quality finish ensures a great look for many years
slim design allows for easy placement in the studio or on stage

GOLD-PLATED XLR CONNECTOR

for loss-free and reliable signal connection

SPECIFICATIONS

Original Red version
Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)
Gain: 28 dB (load 1kOhms)
Max output level (0.5% THD): 8.3 dBV (2.6 V)
Output noise level: 9 μV (JIS-A)
Powering: 48 Volts according toIEC 61938
Electrical impedance: 135 Ohms
Recommended load impedance: >1k Ohms
Current consumption: 3.0 mA
Connectivity: 3-pin male/female XLR connector
Dimensions: Diameter: 19 mm Length: 95.5 mm
Weight: 80 g
